Using Android Debug Bridge (adb) for Remote Access and File Transfers

Android Debug Bridge (adb) is the default recommend way to transfer files to the MitySOM-QC6490.

Development Board Configuration

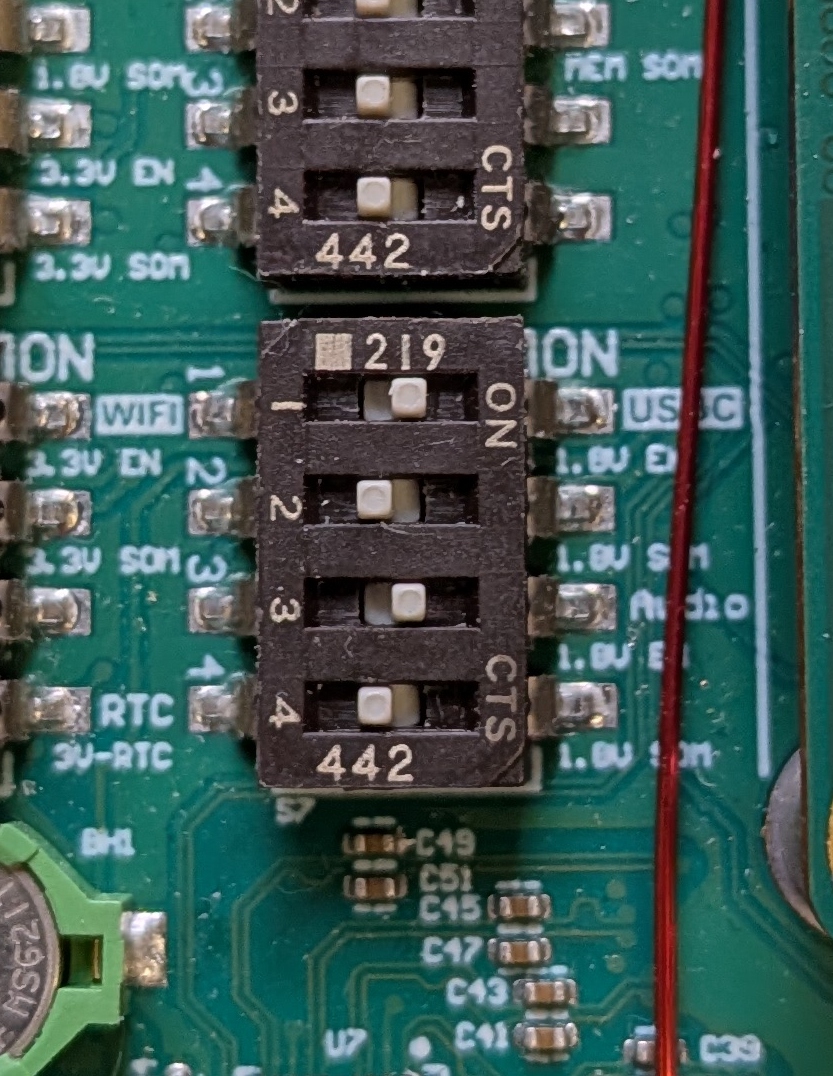

Ensure that Switch S7 is set properly.
  • Switch 1 should be set to enable the USBC, which is a top level enable to send 1.8 V for USB-C
  • Switch 2 can be either set or not set
    • If Switch 2 is not set the 1.8V comes from the DC supply on the Development Kit
    • If Switch 2 is set the 1.8V comes from the SOM

Prerequisites

To use adb with the QC SOM, first ensure you have adb installed on the host PC. This can be achieved via:
  • Your host PC's package repository, if applicable.
    • For example, on Ubuntu (tested on 18.04 and 24.04) you can run sudo apt install adb android-sdk-platform-tools-common
  • Android's downloads page (not tested)
  • Additionally, on Linux platforms, determine whether you need to create additional udev rules.

Setup

  • Plug in a USB cable (either USB-A to USB-C or USB-C to USB-C) between the host PC and dev kit's USB-C port (J6). Note: Ensure the SOM is NOT booted prior to plugging in the USB.
  • Boot the SOM and then, from the host PC, run adb devices. This should start adb and detect any available devices automatically.
    • Example of successful connection:
      $ adb devices
      * daemon not running; starting now at tcp:5037
      * daemon started successfully
      List of devices attached
      f4b115d2    device

  • Note that all transfers and access are requested from the host PC
    • To send data the host PC to the MitySOM-QC6490 try the following:
      adb push <source> <destination>

      • Note: source is the path on the host PC of the file to be transferred to the MitySOM-QC6490.
      • Note: destination is the path on the MitySOM-QC6490 where the file is to be written.
    • To send data the MitySOM-QC6490 to the host PC to try the following:
      adb pull <source> <destination>

      • Note: source is the path on the MitySOM-QC6490 of the file to be transferred to the host PC.
      • Note: destination is the path on the host PC where the file is to be written.
    • To achieve remote console access to the MitySOM-QC6490 try the following:
      adb shell

  • Note: Once the SOM is booted, do not disconnect the USB-C connection. If you do, you may need to power off the SOM and repeat this procedure to reconnect.

Debug

If you have any issues with connecting adb, try the following:
  • Disconnect the USB-C, power cycle the SOM, reconnect the USB, and boot the SOM again.
  • Try different ports on the host PC and/or try different USB cables.

References

https://developer.android.com/tools/adb
